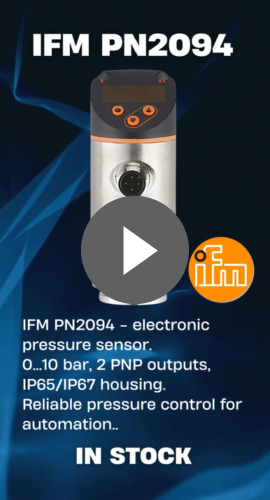

IFM Electronic PN2094

Electronic pressure sensor

IN STOCK!!!

PN2094 electronic pressure sensor from IFM Electronic has a display and programmable switching outputs. The pressure sensor works in the pressure range of -1-10 bar and convinces with high protection against overloads. With a high degree of protection IP65/IP67 and maintenance-free operation this sensor ensures long-lasting and reliable operation.

This electronic pressure sensor with technological connection G 1/4 and connector M12 is the optimal solution for hydraulic and pneumatic applications in the field of machine building and the automotive industry.

Key Features

1. Has two switching outputs: 1) programmable as IO-Link; 2) as analog output
2. Housing with hinged swivel mechanism Has high overload protection, making it very stable
3. Features a programmable red/green display for precise identification of acceptable range
4. Can be used in difficult operating conditions thanks to its very robust design

pn2094 the main Data:

• Upper pressure range (bar): 10
• Lower pressure range (bar) -1
• Connection: M12 connector
• Analog output: 4-20 mA
• Type of pressure: Relative
• Joining the process: G 1/4
• Placement of threads: Internal
• Body material: Stainless steel

Datasheet:

• Device type: Electronic pressure sensor with display
• Type of pressure: Relative pressure
• Pressure measurement range: -1 ... 10 bar
• Accuracy: < ± 0.4 %
• Settings: Buttons
• Operating voltage (minimum): 18 V
• Operating voltage (maximum): 30 V
• Voltage type: Direct current
• Number of outputs: 2 (Output 1: PNP; Output 2: 0-10V)
• Short circuit protection: 4-20 mA
• Pressure resistance: 75 bar
• Technological connection: Internal thread G 1/4
• Connection: M12 connector
• Material of technological connection: 1.4404 (stainless steel/316L)
• Case material: 1.4404 (stainless steel/316L)
• Ambient temperature: -25 °C ...80 °C
• Degree of protection: IP65/IP67
• Application: Production automation
• IO-Link interfaces
• Special features Change indicator (red and green)
• Accessories included: No
• cULus approval

Pressure sensors PN series from IFM Electronic are characterized by a modern and user-friendly design. Maximum strength, high degree of protection and laser marking guarantee reliable operation of sensors even in difficult industrial conditions. The ceramic-capacitive measuring principle with special support of the measuring diaphragm makes the sensors resistant to overloads and high pressure peaks, providing excellent long-term stability.

Setup, maintenance, and operation are made easy with a 4-digit LED display that is visible from all sides, even at long distances, and two toggleable LED status indicators on the sensor head. The display can be switched from "red" indication to alternating "red - green" indication. In this way, you can highlight the switching state or create an independent colored window. The screwed sensor can be turned in any direction. Mounting brackets, which can be purchased additionally, allow you to install it in any position.
