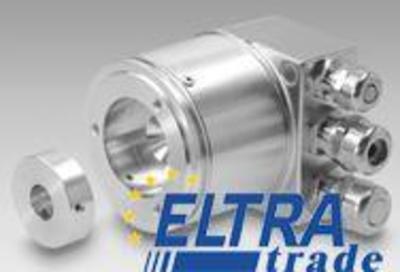

Baumer BMMK 30 SSI - MAGRES
Absolute encoders
| Voltage supply | 5 VDC ±10 % 10...30 VDC |
| Consumption typ. | 100 mA (5 VDC, w/o load) 50 mA (24 VDC, w/o load) |
| Sensing method | Magnetic |
| Operating temperature | -20...+85 °C |
| Inputs | SSI clock Zero setting input |
- Overview
- Comments
| Size (flange) | ø30 mm |
| Sensing method | Magnetic |
| Function | Multiturn |
| Connection | Connector M9, 8-pin Cable 1 m |
| Interference immunity | DIN EN 61000-6-2 |
| Relative humidity | 95 % |
| Steps per turn | 1024 / 10 bit |
| Shaft type | ø5 mm (magnet bore) ø6 mm (magnet bore) ø8 mm (magnet bore) |
| Absolute accuracy | ±1 ° |
| Interface | SSI |
| Operating temperature | -20...+85 °C |
| Initializing time typ. | 70 ms after power on |
| Output stages | SSI data: linedriver RS485 |
| Voltage supply | 5 VDC ±10 % 10...30 VDC |
| Consumption typ. | 100 mA (5 VDC, w/o load) 50 mA (24 VDC, w/o load) |
| Materials | Housing: steel Flange: aluminium |
| Inputs | SSI clock Zero setting input |
| Approval | UL approval / E217823 |
| Operating speed | ≤6000 rpm |
| Gap tolerance | ≤0.3 mm axial ≤0.1 mm radial |
| Code | Gray or binary |
| Protection DIN EN 60529 | IP 67 |
| Code sequence | CW: ascending values with clockwise sense of rotation; looking at flange |
| Weight approx. | 70 g |
| Emitted interference | DIN EN 61000-6-3 |
| Resistance | DIN EN 60068-2-6 Vibration 30 g, 10-2000 Hz DIN EN 60068-2-27 Shock 100 g, 6 ms |
| Number of turns | 32768 / 15 bit |
| manufacter SKU | BMMK 30 SSI - MAGRES |
