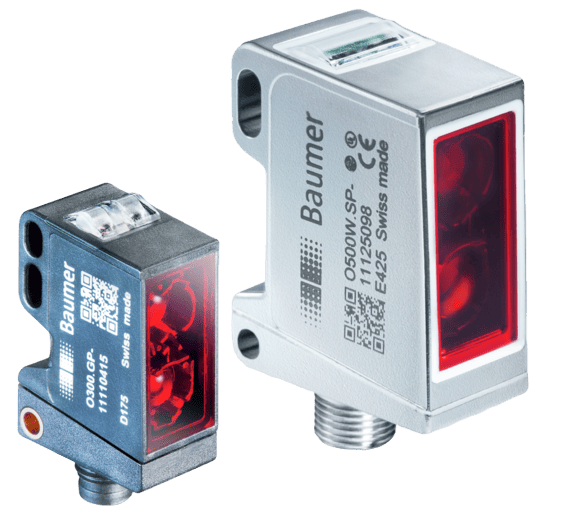

Baumer OADM 21I6481/S14F
Distance sensors
art. 11003837
| measuring distance Sd | 200 ... 1000 mm |
| adjustment | Teach-in: button / external |
| Teach-in range min. | > 10 mm |
| operating temperature | 0 ... +50 °C |
Item Number:
OADM 21I6481/S14F
The price is not final. Please check with the manager!
Contact our experts
- Overview
- Comments
| adjustment | Teach-in: button / external |
| connection types | connector M12 8 pin, rotatable |
| reverse polarity protection | yes, Vs to GND |
| ambient light immunity | < 10 kLux |
| type | rectangular |
| soiled lens indicator | LED red |
| load resistance (analog I) | < (+Vs - 6 V) / 0,02 A |
| laser class | 2 |
| beam diameter | 2 mm |
| wave length | 650 nm |
| response time / release time | < 4 ms |
| power on indication | LED green |
| beam type | point |
| depth | 45 mm |
| width / diameter | 20,4 mm |
| manufacter SKU | OADM 21I6481/S14F |
| front (optics) | glass |
| housing material | aluminum |
| output signal | 4 ... 20 mA / 0 ... 10 VDC |
| operating temperature | 0 ... +50 °C |
| current consumption max. (no load) | 100 mA |
| voltage supply range +Vs | 12 ... 28 VDC |
| short circuit protection | yes |
| output current | < 100 mA |
| protection class | IP 67 |
| height / length | 135 mm |
| alarm output | PNP |
| Teach-in range min. | > 10 mm |
| linearity error | ± 0,11 ... ± 1,65 mm |
| resolution | 0,02 ... 0,4 mm |
| temperature drift | < 0,02 % Sde/K |
| measuring distance Sd | 200 ... 1000 mm |
| load resistance (analog U) | > 100 kOhm |
| light source | pulsed red laser diode |
| output circuit | analog |
