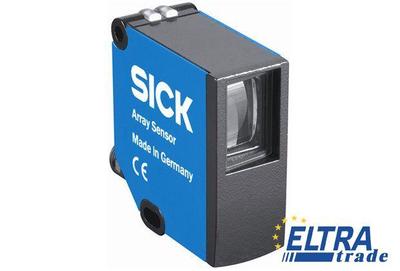

Sick AT20D-NM331

Array sensors
Sick AT20D-NM331

We are sorry, but Sick AT20D-NM331 is no longer available to order.

Specification:

Part Number1046467
Switching mode :Q (NPN)
Repeatability :0.05 mm
Light spot size:50 mm x 10 mm
Linearity :± 2 %
UL File No.:NRKH.E181493 & NRKH7.E181493
Ambient temperature:Operation: -10 ... +55 °C, Storage: -25 ... +75 °C
Circuit protection:VS connections reverse-polarity protected
Output Q short-circuit protected
Interference suppression
Operating range:90 mm 110 mm
Housing material:Metal
Power consumption :< 3.1 W
Protection class:III
Weight:Ca. 135 g
Shock load:According to IEC 60068
MDO :1.6 mm
Switching output:NPN: HIGH = approx. VS / LOW ≤ 2 V
Resolution analog output:12 bit
Dimensions (L x W x H):54.1 mm x 24.3 mm x 59.8 mm
Initialization time :0.48 s
Output rate of analog output:1 ms
Connection type:Male connector M12, 5-pin
Light source :LED, white
Measuring range:30 mm
Analog output QA:4 mA ... 20 mA
Supply voltage Vs :DC 24 V, ± 20 %
Ripple :≤ 5 V
Functional principle:Diameter detection, proximity and reflector
Enclosure rating:IP 67
Output current Imax.:< 100 mA
Sensing distance:100 mm
