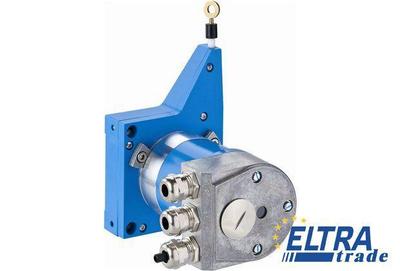

Sick BCG08-C1HM0336

Wire draw encoders
Sick BCG08-C1HM0336
Price on Request
One click request

Specification:

Part Number1061026
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Encoder profile:Device Profile DSP 406 V 2.0
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Power consumption:2 W
Supply voltage:10 V ... 32 V
Measuring range:0 m ... 3 m
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
Housing material, wire draw mechanism:Plastic, Noryl
Wire acceleration:10 m/s²
Mass (measuring wire):1.2 g/m
Enclosure rating encoder:IP 67
Operating speed:4 m/s
Hysteresis:≤ 0.4 mm
Encoder:Absolute encoders
Mass (including encoder):840 g
Bus termination:Via DIP switches
Initialization time:Ca. 12 s
Electrical interface:CANopen
Mass (mechanics):250 g
Linearity:≤ ± 2 mm
Actual length of cable extension:3.2 m
Mounted mechanic:MRA-G080-103D3
Mounted encoder:ATM60 CANopen
Enclosure rating mechanic:IP 50
Length of wire pulled out per revolution:230 mm
Measuring wire diameter:0.55 mm
Spring return force:Ca. 5 N ... ca. 6.3 N
Resolution (wire draw + encoder):0.03 mm
MTTFd: mean time to dangerous failure:150 a
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Life of wire draw mechanism:1 million cycles
Number of steps per revolution:8,192
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
SET (electronic adjustment):Via PRESET push button or protocol
Working temperature range (mechanics):-30 °C ... +70 °C
Repeatability:≤ 0.2 mm
Part number encoder:1030025
Part number mechanic:5322778
Address setting:0 ... 63
Working temperature range (encoder):-20 °C ... +70 °C
Relative humidity / Condensation:98 % (condensation of the optical scanning not permitted)
Protocol:Communication Profile DS 301 V4.0
Connection type:Bus adaptor with cable screw fixings or connector
