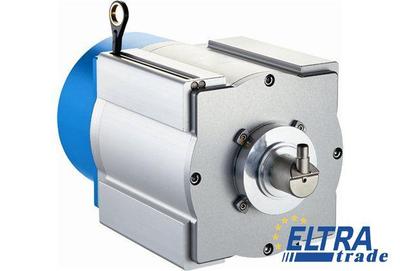

Sick BTF19-C1QM5033

Wire draw encoders
Sick BTF19-C1QM5033
Price on Request
One click request

Specification:

Part Number1068898
Encoder profile:CiA DS-406, V3.2. - Class C2
Number of steps per revolution:16,384
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Mounted encoder:AHM36 CANopen
Actual length of cable extension:50.2 m
Mounted mechanic:MRA-F190-150D2
Spring return force:18 N ... 37 N
Linearity:≤ ± 2 mm
Length of wire pulled out per revolution:491.5 mm
Life of wire draw mechanism:1 million cycles
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Repeatability:≤ 5 mm
Part number mechanic:6028630
Address setting:0 ... 127
Resolution (wire draw + encoder):0.03 mm
Hysteresis:≤ 10 mm
Connection type:Universal
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Bus termination:Via external termination resistance
Power consumption:1.5 W
Mass (mechanics):16.5 kg
Operating speed:4 m/s
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
Mass (including encoder):16.62 kg
Relative humidity / Condensation:90 % (condensation of the optical scanning not permitted)
Encoder:Absolute encoders
Part number encoder:1065999
Supply voltage:10 V ... 30 V
Electrical interface:CANopen
Initialization time:2 s
Working temperature range (mechanics):-30 °C ... +70 °C
Enclosure rating mechanic:IP 31
MTTFd: mean time to dangerous failure:270 a
Measuring range:0 m ... 50 m
Wire acceleration:18 m/s²
Enclosure rating encoder:IP 66 / IP 67 (according to IEC 60529), housing side, IP 66 / IP 67 (according to IEC 60529), shaft side
Mass (measuring wire):7.1 g/m
Protocol:Communication Profile DS 301 V4.02
Measuring wire diameter:1.35 mm
Working temperature range (encoder):-30 °C ... +70 °C
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Housing material, wire draw mechanism:Aluminum (anodised), die-cast zinc
