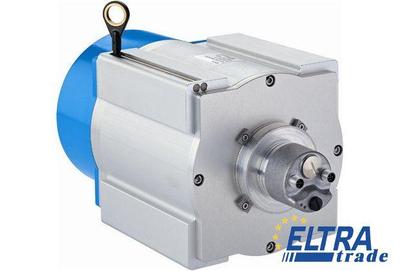

Sick BTF19-P1BM5017

Wire draw encoders
Sick BTF19-P1BM5017
Price on Request
One click request

Specification:

Part Number1061009
Bus termination:Via DIP switches
Mounted mechanic:MRA-F190-150D2
Encoder:Absolute encoders
Actual length of cable extension:50.2 m
Working temperature range (encoder):-10 °C ... +70 °C, A3M60, -20 °C ... +70 °C, ATM60 PROFIBUS
SET (electronic adjustment):Via PRESET push button or protocol
Repeatability:≤ 5 mm
Number of steps per revolution:8,192
Part number encoder:1051018
Resistance to vibration:30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Resolution (wire draw + encoder):0.06 mm
Supply voltage:10 V ... 32 V
Length of wire pulled out per revolution:491.5 mm
Protocol:PROFIBUS DP V0 (A3M60), Profil für Encoder (07hex) - Class 2 (ATM60 PROFIBUS)
Connection type:Connector 3 x M12, 5-pin, axial
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
Operating speed:4 m/s
Mass (mechanics):16.5 kg
Hysteresis:≤ 10 mm
Encoder profile:Encoder profile version 1.1 class 1 and class 2 (A3M60), Profil für Encoder (07hex) - Class 2 (ATM60 PROFIBUS)
Mounted encoder:A3M60, ATM60 PROFIBUS
Initialization time:Ca. 1 s, A3M60, Ca. 12 s, ATM60 PROFIBUS
Resistance to shocks:100 g, 6 ms (according to EN 60068-2-27)
Electrical interface:PROFIBUS
Measuring wire diameter:1.35 mm
Relative humidity / Condensation:95 % (A3M60, condensation of the optical scanning not permitted), 98 % (ATM60 PROFIBUS, condensation of the optical scanning not permitted)
MTTFd: mean time to dangerous failure:150 a (ATM60 PROFIBUS), 60 a (A3M60)
Wire acceleration:18 m/s²
Power consumption:1.5 W (A3M60), 2 W (ATM60 PROFIBUS)
Enclosure rating mechanic:IP 31
Mass (measuring wire):7.1 g/m
Linearity:≤ ± 2 mm
Spring return force:18 N ... 37 N
Measuring range:0 m ... 50 m
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Housing material, wire draw mechanism:Aluminum (anodised), die-cast zinc
Mass (including encoder):16.78 kg (A3M60), 17.09 kg (A3M60)
Enclosure rating encoder:IP 67
Working temperature range (mechanics):-30 °C ... +70 °C
Part number mechanic:6028630
Address setting:0 ... 127, DIP switch
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
Life of wire draw mechanism:1 million cycles
