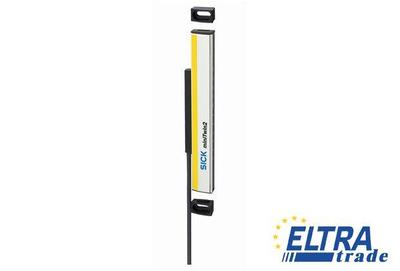

Sick C2MT-06634BBC03FB0

Safety light curtains
Sick C2MT-06634BBC03FB0
441.42 EUR

Specification:

Part Number1207970
Power consumption:≤ 3 A
Type of output:PNP semiconductors, short-circuit protected, cross-circuit monitored
Display elements:LEDs
Typical range:0 m ... 8 m
Synchronization:Optical, without separate synchronization
Permitted cable length:≤ 20 m
Configuration method:Hard wired
Scanning range:0 m ... 6 m
External device monitoring (EDM):+
Switching current:300 mA
Integration via Flexi Soft safety controller:CANopenDeviceNetEtherCATEtherNet/IPModbus TCPPROFIBUS DPPROFINET
Protective field height:660 mm
Switching voltage LOW:2 V DC
Conductor cross-section:0.34 mm²
Ambient operating temperature:-20 °C ... +55 °C
Weight:235 g
Cascaded:-
Safety integrity level:SIL1 (IEC 61508)
SILCL1 (EN 62061)
Ripple:≤ 10 %
Test rate (internal test):58 /s
Beam coding:+
Automatic beam coding:+
Housing material:Aluminum alloy ALMGSI 0.5
Safe SICK device communication via EFI/SDL:-
Response time:≤ 13 ms
Resolution:34 mm
Connection type:Male connector M12, 5-pin
Housing cross-section (incl. system connection):15 mm x 32 mm
Switching voltage HIGH:24 V DC (VS - 2.25 V DC ... VS)
Cable length:700 mm
Maximum demand rate:34 /min (EN ISO 13849)
Restart interlock:+
TM (mission time):20 a (EN ISO 13849)
Shock resistance:10 g, 16 ms (EN 60068-2-27)
Type:Type 2 (IEC 61496)
Enclosure rating:IP 65 (EN 60529)
Air humidity:15 % ... 95 %, non-condensing
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60068-2-6)
Restart interlock (delivery status):Deactivated
External device monitoring (delivery status):Deactivated
Supply voltage:24 V DC (19.2 V DC ... 28.8 V DC)
Category:Category 2 (EN ISO 13849)
Safe state in the event of a fault:At least one OSSD is in the OFF state.
Performance level:PL c (EN ISO 13849), Pay attention to optical characteristics!
Protection class:III (EN 61140)
PFHd:Standalone system: 2.4  1E-08 (EN ISO 13849)
Storage temperature:-25 °C ... +70 °C
