DL100-11HA2109

Long range distance sensors

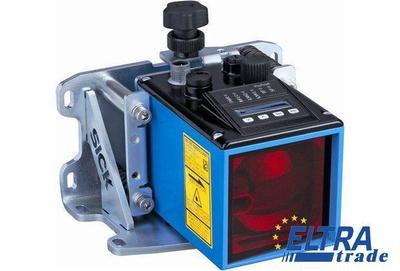

Sick DL100-11HA2109

We are sorry, but Sick DL100-11HA2109 is no longer available to order.

Specification:

Part Number1060393
Output time:Synchronous to PLC request (dependent on interfaces)
Effect of air pressure:0.3 ppm/hPa
Resolution:0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm
Housing material:Aluminum/zinc die-cast
Accuracy :± 3 mm
Ripple :5 Vpp
Repeatability :1.5 mm (at dead time 10 ms), 0.75 mm (at dead time 30 ms)
Temperature drift:Typ. 0.1 mm/K
Connection type:Male connector, M12, SPEEDCON™ compatible
Protection class:III
Switching output :B (push/pull)
MF1, MF2
Measuring range:0.15 m ... 60 m, On reflective tape "Diamond Grade"
Output current IA :≤ 100 mA
Electromagnetic compatibility (EMC) :EN 61000-6-2 / EN 61000-6-4
Ambient temperature :Operation with cooling case: -40 ... +75 °C
Storage: -40 ... +75 °C
Operation with heating: -40 ... +55 °C
Effect of air temperature:1 ppm/K
Modulation frequency:Fix
Multifunctional input (MF) :1 x MF1
Laser class:2 (EN 60825-1 / CDRH)
Initialization time :Typ. 1.5 s
Light source :Laser, red
Internal measurement cycle:1 ms
Typ. light spot size (distance):5 mm (+ 2 mm x distance in m)
Data interface:CANopen
Enclosure rating:IP 65
Max. movement speed:30 m/s
Supply voltage Vs:DC 18 V ... 30 V, limit values
Weight :Ca. 800 g ... 1,600 g
Indication:6 digit 5 x 7 dot matrix display, LEDs
Power consumption:At 24 V DC < 1,000 mA
Mechanical load:Noise: EN 600 68-2-64
Shock: EN 600 68-2-27
Sine: EN 600 68-2-6
