DL100-22HA2109

Long range distance sensors

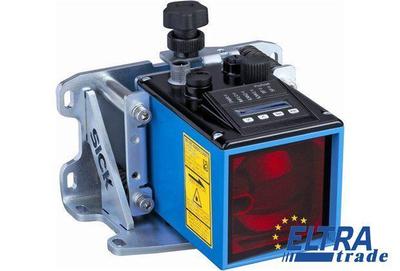

Sick DL100-22HA2109

We are sorry, but Sick DL100-22HA2109 is no longer available to order.

Specification:

Part Number1060389
Dead time:2 ms
Measuring range:0.15 m ... 200 m, On reflective tape "Diamond Grade"
Switching output :B (push/pull)
MF1, MF2
Enclosure rating:IP 65
Repeatability :1 mm
Temperature drift:Typ. 0.1 mm/K
Accuracy :± 2.5 mm
Light source :Laser, red
Effect of air pressure:0.3 ppm/hPa
Power consumption:At 24 V DC < 1,000 mA
Output time:Synchronous to PLC request (dependent on interfaces)
Mechanical load:Noise: EN 600 68-2-64
Shock: EN 600 68-2-27
Sine: EN 600 68-2-6
Electromagnetic compatibility (EMC) :EN 61000-6-2 / EN 61000-6-4
Indication:6 digit 5 x 7 dot matrix display, LEDs
Protection class:III
Supply voltage Vs:DC 18 V ... 30 V, limit values
Initialization time :Typ. 1.5 s
Housing material:Aluminum/zinc die-cast
Acceleration (max.):15 m/s²
Output current IA :≤ 100 mA
Typ. light spot size (distance):5 mm (+ 2 mm x distance in m)
Effect of air temperature:1 ppm/K
Data interface:CANopen
Resolution:0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm
Weight :Ca. 800 g ... 1,600 g
Connection type:Male connector, M12, SPEEDCON™ compatible
Ambient temperature:Operation with cooling case: -40 ... +75 °C
Storage: -40 ... +75 °C
Operation with heating: -40 ... +55 °C
Max. movement speed:30 m/s
Multifunctional input (MF) :1 x MF1
Ripple :5 Vpp
Internal measurement cycle:1 ms
Laser class:2 (EN 60825-1 / CDRH)
Modulation frequency:Fix
