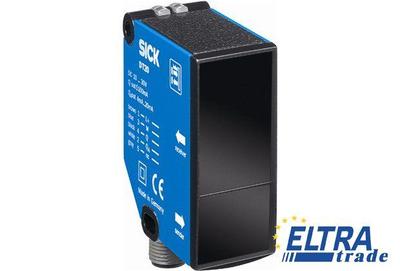

Sick DT20-N130B0960

Short range distance sensors
Sick DT20-N130B0960
Price on Request
One click request

Specification:

Part Number1029274
Repeatability :± 1.5 mm / ± 3 mm
Laser service life (MTTF at 25 °C):100,000 h
Initialization time:≤ 250 ms
Enclosure rating:IP 65
Vibration resistance:EN 60068-2-6 / EN 60068-2-64
Resolution :1 mm / 2 mm
Ripple:≤ 5 Vpp
Shock resistance:EN 60068-2-27
Connection type:Male connector, M12, 5-pin
Temperature drift:0.25 mm/K
Weight:135 g
Switching output :1 x NPN (100 mA)
Power consumption :≤ 1.5 W
Housing material:Metal housing with PMMA lens
Analog output:1 x 4 mA ... 20 mA (≤ 300 &;937;)
Additional function:Customer specific scaled measuring range, Plug & Play, Switching output to monitor the measuring range
Supply voltage Vs :DC 10 V ... 30 V
Response time :10 ms / 15 ms
Indication:2 x LED
Protection class:II
Measuring range:90 mm ... 600 mm, 18 % ... 90 % remission
Output time:1 ms
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +75 °C
Warm-up time:≤ 30 min
Accuracy:± 4 mm
Typ. light spot size (distance):15 mm x 15 mm (at 1 m)
Light source:LED, infrared
