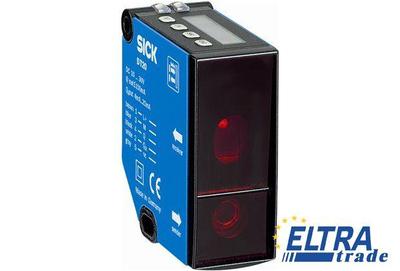

Sick DT20-N254B

Short range distance sensors
Sick DT20-N254B
866.97
One click request

Specification:

Part Number1041279
Light source:Laser, red
Warm-up time:≤ 10 min
Additional function:Switch-off display, Teach-in of analog output, Teach-in of switching output, Set moving average fast/medium/slow, Invertible analog output, Switching output invertible, Multifunctional input: laser off / external teach-in / deactivated, Switching mode: distance to object (DtO), Lock user interface
Indication:2 x LED, LC display
Enclosure rating:IP 65
Measuring frequency:400 Hz
Output time:< 2.8 ms
Resolution analog output:12 bit
Response time :2,5 ms / 10 ms / 40 ms
Laser class:2 (EN 60825-1)
Measuring range:50 mm ... 150 mm, 6 % ... 90 % remission
Weight:135 g
Analog output:1 x 4 mA ... 20 mA (≤ 300 &;937;)
Resolution :0.1 mm
Ripple:≤ 5 Vpp
Ambient temperature:Operation: -20 ... +55 °C, Storage: -40 ... +60 °C
Typ. light spot size (distance):2 mm x 4 mm (150 mm)
Typ. ambient light safety:Artificial light: ≤ 3,000 lx, Sunlight: ≤ 10,000 lx
Shock resistance:EN 60068-2-27
Power consumption :≤ 1.8 W
Protection class:II
Multifunctional input (MF) :1 x MF
Connection type:Male connector, M12, 5-pin
Vibration resistance:EN 60068-2-6 / EN 60068-2-64
Housing material:Metal housing with PMMA lens
Switching output :1 x NPN (100 mA)
Supply voltage Vs :DC 10 V ... 30 V
Repeatability :0.5 mm / 0.25 mm / 0.125 mm
Linearity :± 0.5 mm
Temperature drift :0.25 mm/K
