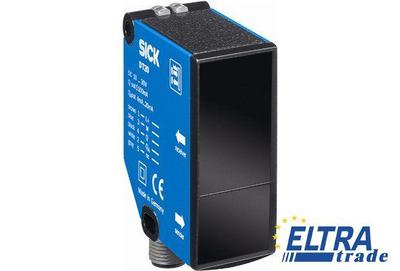

Sick DT20-P130B1080

Short range distance sensors
Sick DT20-P130B1080
Price on Request
One click request

Specification:

Part Number1028720
Response time :10 ms / 15 ms
Protection class:II
Typ. light spot size (distance):15 mm x 15 mm (at 1 m)
Supply voltage Vs :DC 10 V ... 30 V
Enclosure rating:IP 65
Housing material:Metal housing with PMMA lens
Initialization time:≤ 250 ms
Resolution :1 mm / 2 mm
Weight:135 g
Vibration resistance:EN 60068-2-6 / EN 60068-2-64
Additional function:Customer specific scaled measuring range, Plug & Play, Switching output to monitor the measuring range
Power consumption :≤ 1.5 W
Switching output :1 x PNP (100 mA)
Accuracy:± 4 mm
Shock resistance:EN 60068-2-27
Analog output:1 x 4 mA ... 20 mA (≤ 300 &;937;)
Measuring range:100 mm ... 800 mm, 18 % ... 90 % remission
Repeatability :± 1.5 mm / ± 3 mm
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +75 °C
Output time:1 ms
Ripple:≤ 5 Vpp
Indication:2 x LED
Connection type:Male connector, M12, 5-pin
Temperature drift:0.25 mm/K
Warm-up time:≤ 30 min
Laser service life (MTTF at 25 °C):100,000 h
Light source:LED, infrared
