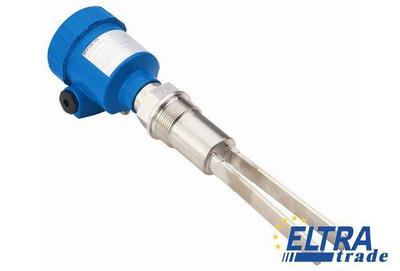

Sick LBV310-CKAZFNAMX

Level sensors
Sick LBV310-CKAZFNAMX

We are sorry, but Sick LBV310-CKAZFNAMX is no longer available to order.

Specification:

Part Number6039482
Repeatability:≤ 5 mm
Process connection:Flange DN 100 PN 6 Form C, DIN2501/ 316L
Output current:1 mA / 2,5 mA
Ambient storage temperature:-40 °C ... 80 °C
ATEX approval:ATEX II 1D, 1/2D, 2D Ex t IIIC T... Da, Da/Db, Db IP66, ATEX II 1G, II 1/2G, II 2G Ex ia IIC T6 Ga, Ga/Gb, Gb
Accuracy of sensor element:± 10 mm
Medium:Bulk solids
Enclosure rating:IP 66 / IP 67
Particle size:< 10 mm
Sensor material:Stainless steel 1.4404
Ambient temperature operation:-40 °C ... 80 °C
Power consumption:1 mA / 2,5 mA
Probe length:220 mm
Response time:500 ms when covered / 1000 ms when uncovered
Process pressure:-1 bar ... 25 bar
Connection type:M20 x 1.5
Process temperature:-50 °C ... 150 °C
VDE protection class 2:+
Type examination:TÜV 09 ATEX 372525 X, TÜV 09 ATEX 555503
Initialization time:< 2 s
Hysteresis:10 mm
Measurement:Switch
Housing material:Aluminum
Supply voltage:NAMUR signal: 4.5 V DC ... 12 V DC
Fill material density:≥ 0.008
