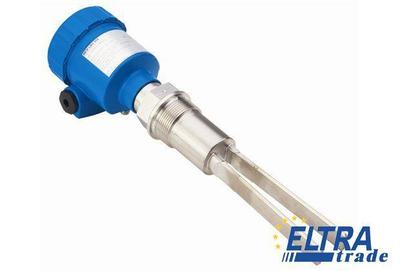

Sick LBV310-GXAGDRAMX

Level sensors
Sick LBV310-GXAGDRAMX

We are sorry, but Sick LBV310-GXAGDRAMX is no longer available to order.

Specification:

Part Number6041372
Process connection:G 1½ A PN 25
Inductive load:750 VA 54 W
Power consumption:5 mA ... 30 mA
Hysteresis:10 mm
Repeatability:≤ 5 mm
Output current:> 10 µA; < 3A AC, 1A DC
Process pressure:-1 bar ... 25 bar
Medium:Bulk solids
Capacitive load:750 VA 54 W
Sensor material:Stainless steel 1.4404
Type examination:TÜV 09 ATEX 555503
Accuracy of sensor element:± 10 mm
Ambient storage temperature:-40 °C ... 80 °C
Contact load:Min. 50 mW/max. 750 VA, 54 W
Measurement:Switch
Initialization time:< 2 s
VDE protection class 1:+
Housing material:Aluminum
Supply voltage:Double relay (DPDT): 20 V DC ... 72 V DC / 20 ... 253 V AC
ATEX approval:ATEX II 1D, 1/2D, 2D Ex t IIIC T... Da, Da/Db, Db IP66
Response time:500 ms when covered / 1000 ms when uncovered
Process temperature:-50 °C ... 150 °C
Probe length:220 mm
Enclosure rating:IP 66 / IP 67
Particle size:< 10 mm
Connection type:M20 x 1.5
Ambient temperature operation:-40 °C ... 80 °C
Fill material density:≥ 0.008
