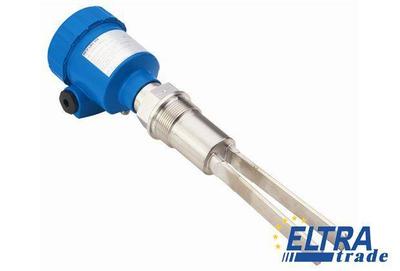

Sick LBV310-XXANDT8NX

Level sensors
Sick LBV310-XXANDT8NX

We are sorry, but Sick LBV310-XXANDT8NX is no longer available to order.

Specification:

Part Number6038045
Process connection:1 1/2" NPT PN 25 / 316L
Connection type:½" NPT
Ambient temperature operation:-40 °C ... 80 °C
Signal voltage LOW:< 1 V
Probe length:220 mm
Repeatability:± 5 mm
Particle size:< 10 mm
Inductive load:1 H
Process pressure:-1 bar ... 25 bar
Fill material density:0.008 g/cm
Process temperature:-50 °C ... 150 °C
Signal voltage HIGH:Uv - 3 V
Switching output:Transistor output PNP/ NPN: 10 V DC ... 55 V DC
Sensor material:Stainless steel 1.4404
Housing material:Stainless steel (electropolished) 316L
Power consumption:< 10 mA
Output current:< 300 mA
Capacitive load:100 nF
Measurement:Switch
Initialization time:2 s
Accuracy:± 10 mm
ATEX certification:-
Ambient storage temperature:-40 °C ... 80 °C
Medium:Bulk solids
Response time:500 ms
Hysteresis:10 mm
Enclosure rating:IP 66
VDE protection class 2:+
Ripple:<= 5 Vpp
