LFV200-XATGBTPV

Level sensors

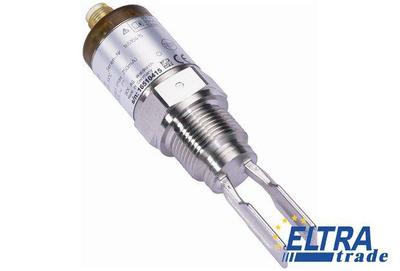

Sick LFV200-XATGBTPV
292.11 EUR

Specification:

Part Number6041094
Ambient temperature operation:-40 °C ... +70 °C
VDE protection class 2:+
WHG approval:+
Process connection:G ¾ A PN 64
Authorizations:WHG approval
Fill material density:≥ 0.7 g/cm
Repeatability:≤ 1 mm
Power consumption:< 10 mA
Ripple:≤ 5 Vpp
Capacitive load:100 nF
Output current:< 250 mA
Supply voltage:10 V DC ... 55 V DC
Silicon free:-
Probe length:38 mm
Inductive load:≤ 1 H
Temperature drift:0,03 mm/K
Hysteresis:2 mm
Connection type:Valve plug DIN 43650
Viscosity:0.1 mPas ... 10,000 mPas
Resolution:≤ 1 mm
Signal voltage HIGH:Vs - < 3 V
Accuracy of sensor element:± 2 mm
Enclosure rating:IP 65
Initialization time:< 2 s
Process pressure:-1 bar ... 64 bar
Process temperature:-40 °C ... +150 °C
Signal voltage LOW:0 V +- 1 V
Housing material:Stainless steel 1.4404, PEI
Response time:500 ms
Measurement:Switch
Ambient storage temperature:-40 °C ... +80 °C
Medium:Fluids
Wetted parts:316L (optional Ra < 0.8 µm)
