LFV200-XXSGATPV

Level sensors

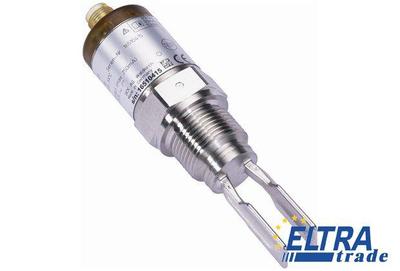

Sick LFV200-XXSGATPV
262.43 EUR

Specification:

Part Number6037759
Silicon free:-
Medium:Fluids
Ambient temperature operation:-40 °C ... +70 °C
Hysteresis:2 mm
Viscosity:0.1 mPas ... 10,000 mPas
Process temperature:-40 °C ... +100 °C
Process connection:G 1 A PN 64
Process pressure:-1 bar ... 64 bar
VDE protection class 2:+
Probe length:38 mm
Supply voltage:10 V DC ... 55 V DC
Signal voltage HIGH:Vs - < 3 V
Output current:< 250 mA
Resolution:≤ 1 mm
Enclosure rating:IP 65
Ambient storage temperature:-40 °C ... +80 °C
Housing material:Stainless steel 1.4404, PEI
Capacitive load:100 nF
Fill material density:≥ 0.7 g/cm
Temperature drift:0,03 mm/K
Response time:500 ms
Power consumption:≤ 10 mA
Connection type:Valve plug DIN 43650
Inductive load:≤ 1 H
Ripple:≤ 5 Vpp
Repeatability:≤ 1 mm
Signal voltage LOW:0 V +- 1 V
Initialization time:< 2 s
Wetted parts:316L (optional Ra < 0.8 µm)
Measurement:Switch
Accuracy of sensor element:± 2 mm
