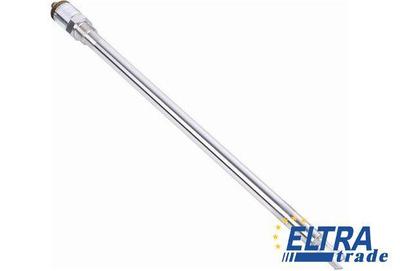

Sick LFV230-XXSGBTPM0700

Level sensors
Sick LFV230-XXSGBTPM0700

We are sorry, but Sick LFV230-XXSGBTPM0700 is no longer available to order.

Specification:

Part Number6041857
Wetted parts:316L (optional Ra < 0.8 µm)
Resolution:≤ 1 mm
Initialization time:< 2 s
Probe length:700 mm
Capacitive load:100 nF
Output current:< 250 mA
Silicon free:-
Ambient temperature operation:-40 °C ... +70 °C
Hysteresis:2 mm
Repeatability:≤ 1 mm
Enclosure rating:IP 67
Medium:Fluids
Signal voltage LOW:0 V +- 1 V
Process connection:G ¾ A PN 64
Temperature drift:0,03 mm/K
Signal voltage HIGH:Vs - < 3 V
Fill material density:≥ 0.7 g/cm
Measurement:Switch
Response time:500 ms
Accuracy of sensor element:± 2 mm
VDE protection class 2:+
Process temperature:-40 °C ... +100 °C
Power consumption:< 10 mA
Supply voltage:10 V DC ... 55 V DC
Viscosity:0.1 mPas ... 10,000 mPas
Inductive load:≤ 1 H
Ambient storage temperature:-40 °C ... +80 °C
Process pressure:-1 bar ... 64 bar
Housing material:Stainless steel 1.4404, PEI
Ripple:≤ 5 Vpp
Connection type:Round connector M12 x 1, 4-pin
