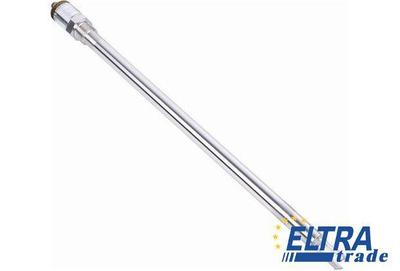

Sick LFV230-XXSGBTPM1100

Level sensors
Sick LFV230-XXSGBTPM1100

We are sorry, but Sick LFV230-XXSGBTPM1100 is no longer available to order.

Specification:

Part Number6041864
Medium:Fluids
Ambient storage temperature:-40 °C ... +80 °C
Hysteresis:2 mm
Response time:500 ms
Repeatability:≤ 1 mm
Accuracy of sensor element:± 2 mm
Wetted parts:316L (optional Ra < 0.8 µm)
Fill material density:≥ 0.7 g/cm
Silicon free:-
Process connection:G ¾ A PN 64
Ambient temperature operation:-40 °C ... +70 °C
Signal voltage LOW:0 V +- 1 V
Probe length:1,100 mm
Capacitive load:100 nF
Viscosity:0.1 mPas ... 10,000 mPas
Connection type:Round connector M12 x 1, 4-pin
Power consumption:< 10 mA
Supply voltage:10 V DC ... 55 V DC
Enclosure rating:IP 67
Temperature drift:0,03 mm/K
Process pressure:-1 bar ... 64 bar
Housing material:Stainless steel 1.4404, PEI
Inductive load:≤ 1 H
VDE protection class 2:+
Output current:< 250 mA
Initialization time:< 2 s
Signal voltage HIGH:Vs - < 3 V
Measurement:Switch
Resolution:≤ 1 mm
Process temperature:-40 °C ... +100 °C
Ripple:≤ 5 Vpp
