LFV230-XXTGBTPM0100

Level sensors

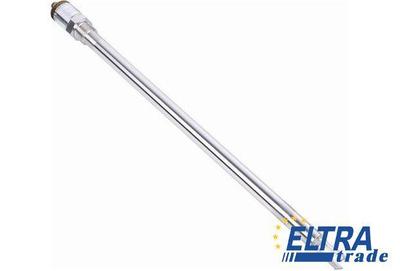

Sick LFV230-XXTGBTPM0100
311.86 EUR

Specification:

Part Number6041902
Connection type:Round connector M12 x 1, 4-pin
Power consumption:< 10 mA
Output current:< 250 mA
Capacitive load:100 nF
Process temperature:-40 °C ... +150 °C
VDE protection class 2:+
Process connection:G ¾ A PN 64
Housing material:Stainless steel 1.4404, PEI
Resolution:≤ 1 mm
Inductive load:≤ 1 H
Measurement:Switch
Probe length:100 mm
Response time:500 ms
Fill material density:≥ 0.7 g/cm
Temperature drift:0,03 mm/K
Viscosity:0.1 mPas ... 10,000 mPas
Silicon free:-
Signal voltage LOW:0 V +- 1 V
Ambient storage temperature:-40 °C ... +80 °C
Accuracy of sensor element:± 2 mm
Initialization time:< 2 s
Hysteresis:2 mm
Process pressure:-1 bar ... 64 bar
Ambient temperature operation:-40 °C ... +70 °C
Ripple:≤ 5 Vpp
Wetted parts:316L (optional Ra < 0.8 µm)
Medium:Fluids
Repeatability:≤ 1 mm
Supply voltage:10 V DC ... 55 V DC
Enclosure rating:IP 67
Signal voltage HIGH:Vs - < 3 V
