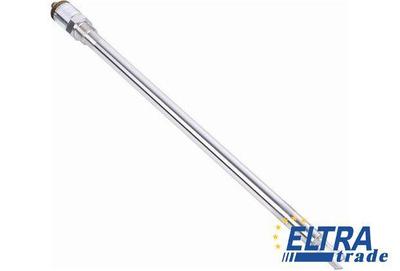

LFV230-XXTGBTPM0400

Level sensors
Sick LFV230-XXTGBTPM0400
366.10 EUR

Specification:

Part Number6041907
Ripple:≤ 5 Vpp
Ambient temperature operation:-40 °C ... +70 °C
Supply voltage:10 V DC ... 55 V DC
Response time:500 ms
Ambient storage temperature:-40 °C ... +80 °C
Process connection:G ¾ A PN 64
Enclosure rating:IP 67
Hysteresis:2 mm
Signal voltage LOW:0 V +- 1 V
Silicon free:-
Fill material density:≥ 0.7 g/cm
Medium:Fluids
Wetted parts:316L (optional Ra < 0.8 µm)
Resolution:≤ 1 mm
Power consumption:< 10 mA
Measurement:Switch
Process temperature:-40 °C ... +150 °C
Inductive load:≤ 1 H
Signal voltage HIGH:Vs - < 3 V
Repeatability:≤ 1 mm
Accuracy of sensor element:± 2 mm
Probe length:400 mm
Output current:< 250 mA
Capacitive load:100 nF
Initialization time:< 2 s
Housing material:Stainless steel 1.4404, PEI
Connection type:Round connector M12 x 1, 4-pin
VDE protection class 2:+
Viscosity:0.1 mPas ... 10,000 mPas
Temperature drift:0,03 mm/K
Process pressure:-1 bar ... 64 bar
