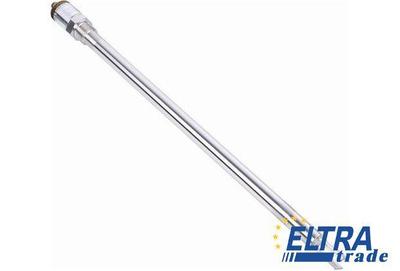

LFV230-XXTGBTPM0500

Level sensors
Sick LFV230-XXTGBTPM0500
382.73 EUR

Specification:

Part Number6041909
Accuracy of sensor element:± 2 mm
Housing material:Stainless steel 1.4404, PEI
Measurement:Switch
Signal voltage LOW:0 V +- 1 V
Signal voltage HIGH:Vs - < 3 V
Ambient storage temperature:-40 °C ... +80 °C
Resolution:≤ 1 mm
Supply voltage:10 V DC ... 55 V DC
Output current:< 250 mA
Medium:Fluids
Silicon free:-
Process temperature:-40 °C ... +150 °C
Connection type:Round connector M12 x 1, 4-pin
Capacitive load:100 nF
Wetted parts:316L (optional Ra < 0.8 µm)
Inductive load:≤ 1 H
Ripple:≤ 5 Vpp
Ambient temperature operation:-40 °C ... +70 °C
Process connection:G ¾ A PN 64
Hysteresis:2 mm
Response time:500 ms
Repeatability:≤ 1 mm
Process pressure:-1 bar ... 64 bar
Enclosure rating:IP 67
Power consumption:< 10 mA
Viscosity:0.1 mPas ... 10,000 mPas
Fill material density:≥ 0.7 g/cm
Probe length:500 mm
Initialization time:< 2 s
Temperature drift:0,03 mm/K
VDE protection class 2:+
