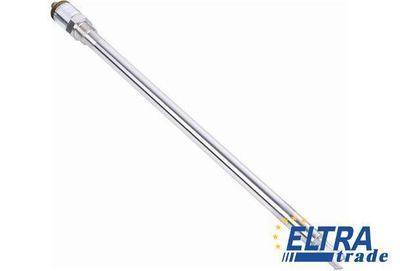

Sick LFV230-XXTGBTPM0700

Level sensors
Sick LFV230-XXTGBTPM0700

We are sorry, but Sick LFV230-XXTGBTPM0700 is no longer available to order.

Specification:

Part Number6041913
Power consumption:< 10 mA
Process pressure:-1 bar ... 64 bar
Measurement:Switch
Ambient temperature operation:-40 °C ... +70 °C
Signal voltage LOW:0 V +- 1 V
Repeatability:≤ 1 mm
Housing material:Stainless steel 1.4404, PEI
Temperature drift:0,03 mm/K
Capacitive load:100 nF
Probe length:700 mm
Signal voltage HIGH:Vs - < 3 V
Resolution:≤ 1 mm
Silicon free:-
Hysteresis:2 mm
Supply voltage:10 V DC ... 55 V DC
Process temperature:-40 °C ... +150 °C
Inductive load:≤ 1 H
Viscosity:0.1 mPas ... 10,000 mPas
Fill material density:≥ 0.7 g/cm
Wetted parts:316L (optional Ra < 0.8 µm)
VDE protection class 2:+
Response time:500 ms
Ambient storage temperature:-40 °C ... +80 °C
Initialization time:< 2 s
Process connection:G ¾ A PN 64
Ripple:≤ 5 Vpp
Accuracy of sensor element:± 2 mm
Medium:Fluids
Enclosure rating:IP 67
Output current:< 250 mA
Connection type:Round connector M12 x 1, 4-pin
