LFV230-XXTGBTPM0900

Level sensors

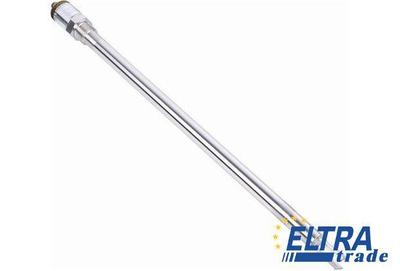

Sick LFV230-XXTGBTPM0900
452.48 EUR

Specification:

Part Number6041916
VDE protection class 2:+
Fill material density:≥ 0.7 g/cm
Temperature drift:0,03 mm/K
Hysteresis:2 mm
Repeatability:≤ 1 mm
Connection type:Round connector M12 x 1, 4-pin
Signal voltage HIGH:Vs - < 3 V
Process temperature:-40 °C ... +150 °C
Housing material:Stainless steel 1.4404, PEI
Viscosity:0.1 mPas ... 10,000 mPas
Silicon free:-
Probe length:900 mm
Wetted parts:316L (optional Ra < 0.8 µm)
Medium:Fluids
Ambient temperature operation:-40 °C ... +70 °C
Power consumption:< 10 mA
Accuracy of sensor element:± 2 mm
Signal voltage LOW:0 V +- 1 V
Output current:< 250 mA
Ripple:≤ 5 Vpp
Enclosure rating:IP 67
Ambient storage temperature:-40 °C ... +80 °C
Initialization time:< 2 s
Inductive load:≤ 1 H
Measurement:Switch
Response time:500 ms
Resolution:≤ 1 mm
Capacitive load:100 nF
Process connection:G ¾ A PN 64
Process pressure:-1 bar ... 64 bar
Supply voltage:10 V DC ... 55 V DC
