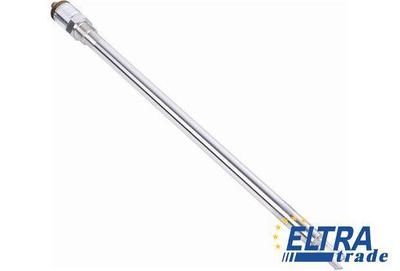

Sick LFV230-XXTGBTPM1100

Level sensors
Sick LFV230-XXTGBTPM1100

We are sorry, but Sick LFV230-XXTGBTPM1100 is no longer available to order.

Specification:

Part Number6041919
Supply voltage:10 V DC ... 55 V DC
Output current:< 250 mA
Process connection:G ¾ A PN 64
Process temperature:-40 °C ... +150 °C
Wetted parts:316L (optional Ra < 0.8 µm)
Initialization time:< 2 s
Capacitive load:100 nF
Signal voltage LOW:0 V +- 1 V
Enclosure rating:IP 67
Response time:500 ms
Inductive load:≤ 1 H
Power consumption:< 10 mA
Medium:Fluids
Fill material density:≥ 0.7 g/cm
Accuracy of sensor element:± 2 mm
Measurement:Switch
VDE protection class 2:+
Ambient storage temperature:-40 °C ... +80 °C
Hysteresis:2 mm
Viscosity:0.1 mPas ... 10,000 mPas
Silicon free:-
Temperature drift:0,03 mm/K
Signal voltage HIGH:Vs - < 3 V
Resolution:≤ 1 mm
Connection type:Round connector M12 x 1, 4-pin
Ripple:≤ 5 Vpp
Ambient temperature operation:-40 °C ... +70 °C
Repeatability:≤ 1 mm
Probe length:1,100 mm
Housing material:Stainless steel 1.4404, PEI
Process pressure:-1 bar ... 64 bar
