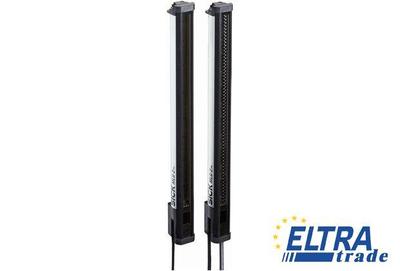

Sick MLG25A-2525I10501

Measuring automation light grids
Sick MLG25A-2525I10501
Price on Request
One click request

Specification:

Part Number1213829
Version:Pro
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Power consumption receiver :140.4 mA
Power consumption sender :60.1 mA
Indication:LED
Housing material:Aluminum
Initialization time:< 1 s
Software features:Baud rate RS-485: 9,600, Interface RS-485: beam status, Q1: presence detection, Teach-in, Standard mode
Option:Nonexistent
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
EMC:EN 60947-5-2
Maximum range :7 m
Data interface:RS-485 + 2 x I/O (IO-Link)
Wave length:850 nm
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Front screen:PMMA
Detection height:2,525 mm
IO-Link:+
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Connection type:Male connector M12, 8-pin
Protection class:III
Output load capacitive:100 nF
Technology:Sender/receiver
Enclosure rating:IP 65, IP 67
Ambient light safety:Direct: 12,500 ... 150,000 lx, Indirect: ≥50,000 lx
Output load inductive:1 H
Working range:5 m
Ripple:< 5 Vpp
Output current Imax.:100 mA
Beam separation:25 mm
Dimensions (W x H x D):34 mm x 2,623.3 mm x 30.6 mm
Minimum range:≥0 mm
Minimum detectable object (MDO) :25 mm
29 mm
Number of beams:102
Supply voltage Vs :DC 18 V ... 30 V
Response time :9.2 ms
Weight:5.347 kg
