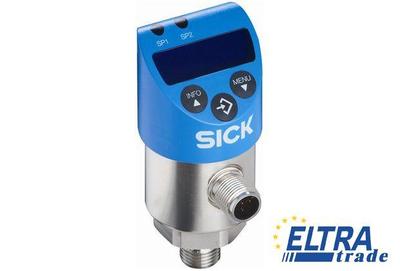

PBS-RB060SG1SSNBMA0Z

Universal pressure sensor PBS
Sick PBS-RB060SG1SSNBMA0Z
210.36 EUR

Specification:

Part Number6042004
Gauge pressure:0 bar ... 1 bar up to bar ... 600 bar
Wetted parts:Pressure connection: stainless steel 316L, Pressure sensor: stainless steel 316L (for measurement ranges from 0 bar ... 10 bar rel stainless steel 13-8 PH)
Temperature coefficient in rated temperature range:Mean TC of span ≤ 0.2 % of span / 10 K, Mean TC of zero: ≤ 0.2% of span / 10 K
Protection class III:+
Response time:3 ms
CE-conformity:Pressure equipment directive: This instrument is a pressure accessory as defined by the directive 97/23/EC, EMC directive: 2004/108/EC, EN 61326-2-3
Internal transmission fluid:Silicone oil (only with pressure ranges < 0 bar ... 10 bar and ≤ 0 bar abs ... 25 bar abs)
Enclosure rating:IP 67
Setting accuracy of switching outputs:≤ ± 0.5 % of span
Compound pressure:-1 bar ... 0 bar up to -1 bar ... +24 bar
Total current consumption:Max. 350 mA / 570 mA (incl. switching current)
Display:14-segment-LED, blue, 4-digits, height 9 mm, electronically turnable by 180°, Update: 1,000, 500, 200, 100 ms (adjustable), Accuracy: ≤ 1 % of span ± 1 digit
Non-linearity:≤ ± 0.5 % (of span (Best Fit Straight Line, BFSL) according to IEC 61298-2)
Weight sensor:Ca. 200 g
Measuring range:0 bar ... 60 bar
Vibration load:10 g according to IEC 60068-2-6 (vibration under resonance)
Zero point adjustment:Max. + 3 % of span
Rotatable housing:Display against housing with electrical connection: 330 °, Housing against process connection: 320 °
Connection type:Round connector M12 x 1, 4-pin, IP 67
Accuracy:≤ ± 1 % of span, (Including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement according to IEC 61298-2))
Isolation voltage:500 V DC
Output signal:1 x PNP + 4 mA ... 20 mA
Relative humidity:≤ 90 %
Housing material:Display window: PC, Plastic head: PC + ABS, Buttons: TPE-E, Lower body: stainless steel 304
Process temperature:-20 °C ... +85 °C
Power consumption:45 mA (for configurations without analog output signal), 70 mA (for configurations with analog output signal)
Pressure port:Standard
Rated temperature range:0 °C ... +80 °C
Medium:Liquid and gaseous media
Process connection:G ¼ A according to DIN 3852-E
Electrical safety:Short-circuit protection: QA, Q1, Q2 towards M, Protection class: III, Overvoltage protection: 40 V DC, Reverse polarity protection: L+ towards M
Absolute pressure:0 bar ... 1 bar up to 0 bar ... 25 bar
Seal:NBR
Pressure type:Gauge pressure
Service life:Minimum 100 Mio. life cycles
Ambient temperature:-20 °C ... +80 °C
Long-term drift/one-year stability:≤ 0.2 % of span according to IEC 61298-2
Shock load:50 g according to IEC 60068-2-27 (mechanical shock)
Storage temperature:-20 °C ... +80 °C
