PBT-CB010SG1SSNVMC0Z

Pressure sensors

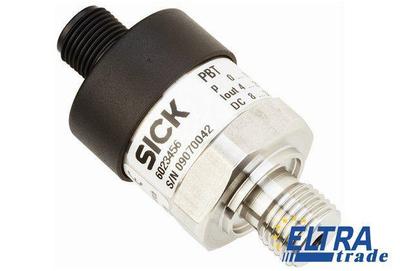

Sick PBT-CB010SG1SSNVMC0Z
141.83 EUR

Specification:

Part Number6038694
Process connection:G ¼ A according to DIN 3852-E
Weight sensor:Ca. 80 g
Non-linearity:≤ ± 0.5 % ((Best Fit Straight Line, BFSL) according to IEC 61298-2)
Wetted parts:Pressure connection: stainless steel 316L, Pressure sensor: stainless steel 316L (for measurement ranges from 0 bar ... 10 bar rel stainless steel 13-8 PH)
Hysteresis:≤ 0.16 % of span
Power consumption:Max. 8 mA for voltage output signal, Signal current (max. 25 mA) for current output
Shock load:500 g according to IEC 60068-2-27 (mechanical shock)
Measuring range:-1 bar ... 9 bar
Pressure port:Standard
Signal noise:≤ 0.3 % of span
CE-conformity:Pressure equipment directive: 97/23/EC, EMC directive: 2004/108/EC, EN 61 326-2-3
Reference conditions:Reference conditions: According to IEC 61298-1
Service life:Minimum 100 Mio. life cycles
Rated temperature range:0 °C ... +80 °C
Output signal:0...10 V, 3-wire
Medium:Liquid and gaseous media
Process temperature:0 °C ... +80 °C
Seal:NBR
Protection class III:+
Accuracy:≤ ± 0,6 % of Span (with non-linearity 0.25 % and with signal output 0 ... 5 V), ≤ ± 1 % of span (with non-linearity 0.25 %), ≤ ± 1,0 % of Span (with non-linearity 0.5 %), (Including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement according to IEC 61298-2))
Housing material:Stainless steel 316L
Compound pressure:-1 bar ... 0 bar up to -1 bar ... +24 bar
Enclosure rating:IP 67
Vibration load:10 g according to IEC 60068-2-6 (vibration under resonance), 20 g optional
Relative humidity:45 % ... 75 %
Internal transmission fluid:Silicone oil (only with pressure ranges < 0 bar ... 10 bar and ≤ 0 bar abs ... 25 bar abs)
Electrical safety:Short-circuit protection: QA towards M, Protection class: III, Overvoltage protection: 32 V DC, 36 V DC with 4 mA ... 20 mA, Reverse polarity protection: L+ towards M
Gauge pressure:0 bar ... 1 bar up to bar ... 600 bar
Non-repeatability:≤ 0.1 % of span
Response time:< 4 ms
Ambient temperature:0 °C ... +80 °C
Pressure type:Compound pressure
Storage temperature:-20 °C ... +80 °C
Connection type:Round connector M12 x 1, 4-pin, IP 67
Adjustment accuracy of zero signal:≤ 0.5 % of span typ., ≤ 0.8 % of span max. (with non-linerarity 0.5 %)
Isolation voltage:500 V DC
Absolute pressure:0 bar ... 1 bar up to 0 bar ... 25 bar
Long-term drift/one-year stability:≤ 0.1 % of span according to IEC 61298-2
