PBT-RP100SN1SE0UMA0Z

Pressure sensor PBT

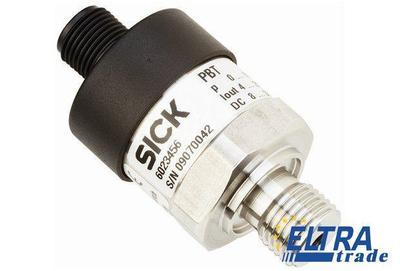

Sick PBT-RP100SN1SE0UMA0Z

We are sorry, but Sick PBT-RP100SN1SE0UMA0Z is no longer available to order.

Specification:

Part Number6039260
Compound pressure:-1 bar ... 0 bar up to -1 bar ... +24 bar
Electrical safety:Short-circuit protection: QA towards M, Protection class: III, Overvoltage protection: 32 V DC, 36 V DC with 4 mA ... 20 mA, Reverse polarity protection: L+ towards M
Rated temperature range:0 °C ... +80 °C
Process connection:¼'' NPT
Vibration load:10 g according to IEC 60068-2-6 (vibration under resonance), 20 g optional
CE-conformity:Pressure equipment directive: 97/23/EC, EMC directive: 2004/108/EC, EN 61 326-2-3
Ambient temperature:0 °C ... +80 °C
Medium:Liquid and gaseous media
Seal:Without seal
Absolute pressure:0 bar ... 1 bar up to 0 bar ... 25 bar
Adjustment accuracy of zero signal:≤ 0.5 % of span typ., ≤ 0.8 % of span max. (with non-linerarity 0.5 %)
Response time:< 4 ms
Wetted parts:Pressure connection: stainless steel 316L, Pressure sensor: stainless steel 316L (for measurement ranges from 0 bar ... 10 bar rel stainless steel 13-8 PH)
Non-linearity:≤ ± 0.5 % ((Best Fit Straight Line, BFSL) according to IEC 61298-2)
Process temperature:-30 °C ... +100 °C
Enclosure rating:IP 67
Gauge pressure:0 bar ... 1 bar up to bar ... 600 bar
Protection class III:+
Relative humidity:45 % ... 75 %
Accuracy:≤ ± 0,6 % of Span (with non-linearity 0.25 % and with signal output 0 ... 5 V), ≤ ± 1 % of span (with non-linearity 0.25 %), ≤ ± 1,0 % of Span (with non-linearity 0.5 %), (Including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement according to IEC 61298-2))
Measuring range:0 psi ... 100 psi
Weight sensor:Ca. 80 g
Isolation voltage:500 V DC
Shock load:500 g according to IEC 60068-2-27 (mechanical shock)
Long-term drift/one-year stability:≤ 0.1 % of span according to IEC 61298-2
Reference conditions:Reference conditions: According to IEC 61298-1
Non-repeatability:≤ 0.1 % of span
Connection type:Round connector M12 x 1, 4-pin, IP 67
Pressure port:Standard
Power consumption:Max. 8 mA for voltage output signal, Signal current (max. 25 mA) for current output
Signal noise:≤ 0.3 % of span
Storage temperature:-30 °C ... +100 °C
Internal transmission fluid:Silicone oil (only with pressure ranges < 0 bar ... 10 bar and ≤ 0 bar abs ... 25 bar abs)
Output signal:0 V ... 5 V, 3-Leiter
Pressure type:Gauge pressure
Hysteresis:≤ 0.16 % of span
Housing material:Stainless steel 316L
Service life:Minimum 100 Mio. life cycles
