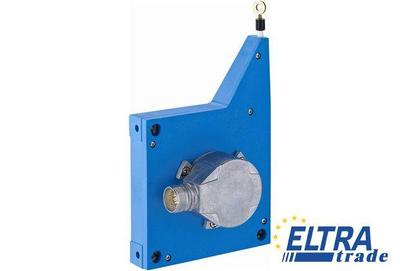

Sick PFG13-E1AM0544

Wire draw encoders
Sick PFG13-E1AM0544
Price on Request
One click request

Specification:

Part Number1061018
Part number mechanic:5322779
Enclosure rating mechanic:IP 50
Relative humidity / Condensation:90 % (condensation of the optical scanning not permitted)
Measuring range:0 m ... 5 m
Spring return force:4.5 N ... 7 N
Wire acceleration:4 m/s²
Mass (including encoder):1.1 kg
Mounted mechanic:MRA-G130-105D3
Linearity:≤ ± 2 mm
Resistance to shocks:60 g, 6 ms (according to EN 60068-2-27)
Electrical interface:HTL/Push pull
Pulses per revolution:16,384
Working temperature range (combination):Wird definiert durch den höheren mininalen und niedrigeren maximalen Wert des Arbeitstemperaturbereichs von Encoder und Mechanik
MTTFd: mean time to dangerous failure:300 a
Operating speed:4 m/s
Reference signal, position:Electronically, gated with A and B
Mounted encoder:DFS60
Part number encoder:1037615
Mass (measuring wire):1.2 g/m
Reference signal, number:1, electronically, gated with A and B
Working temperature range (mechanics):-30 °C ... +70 °C
Actual length of cable extension:5.2 m
Measuring wire material:Highly flexible stranded steel 1.4401 stainless steel V4A
EMC:(according to EN 61000-6-2 and EN 61000-6-3)
Resistance to vibration:20 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6)
Length of wire pulled out per revolution:385 mm
Working temperature range (encoder):-30 °C ... +70 °C
Enclosure rating encoder:IP 67
Repeatability:≤ 0.2 mm
Life of wire draw mechanism:1 million cycles
Housing material, wire draw mechanism:Plastic, Noryl
Maximum load current:30 mA
Power consumption:0.7 W
Hysteresis:≤ 0.4 mm
Supply voltage:4.5 V ... 32 V
Measuring wire diameter:0.55 mm
Connection type:Connector M23, 12-pin, radial
Resolution (wire draw + encoder):0.023 mm
Initialization time:≤ 32 ms, with mechanical zero pulse width≤ 30 ms
Mass (mechanics):800 g
Encoder:Incremental encoders
Maximum output frequency:600 kHz
