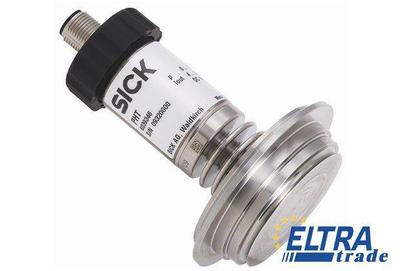

Sick PHT-RB2X5S540S0AMS0Z
Pressure Transmitter PHT
Sick PHT-RB2X5S540S0AMS0Z is outdated.
Specification:
| Part Number | 6039315 |
| Process connection: | Female union nut DIN 11851 DN 40 |
| Supply voltage: | 10 V DC ... 30 V DC |
| Ambient temperature: | -20 °C ... 80 °C |
| Response time: | <= 10 ms |
| Process temperature: | -20 °C ... 150 °C |
| Non-linearity: | 0.2 % (Best Fit Straight Line (BFSL)) |
| CE-conformity: | + |
| Rated temperature: | 0 °C ... 80 °C |
| Accuracy: | <= +/- 0.5 % (of span) |
| Connection type: | M12 x 1, 4-pin |
| Protection class III: | + |
| Weight sensor: | ± 500 g |
| Measuring range: | 0 bar ... 2.5 bar |
| Enclosure rating: | IP 67 |
| Pressure type: | Gauge pressure |
| Wetted parts: | Stainless steel 1.4435 |
| Vibration load: | 15g per IEC 60068-2-6 (vibration under resonance) |
| Housing material: | Stainless steel 1.4571 |
| Electrical safety: | Short-circuit protection: QA towards M, Overvoltage protection: 36 V DC, Reverse polarity protection: L+ towards M |
| Shock load: | 500 g according to IEC 60068-2-27 (mechanical shock) |
| Output signal: | 4...20 mA |
| Dielectric strength: | 500 V DC, NEC Class 02 power supply (low voltage and low current max. 100 VA even under fault conditions) |
