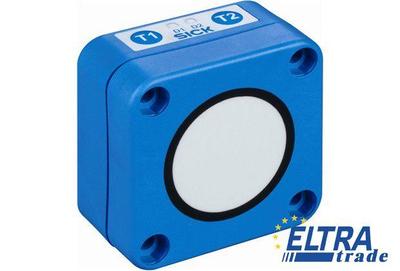

Sick UC30-214164

Ultrasonic sensors
Sick UC30-214164
Price on Request
One click request

Sick UC30-214164 is outdated.


Part Number6054713
Indication:2 x LED
Connection type:Male connector, M12, 5-pin
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Output time:43 ms
Response time:180 ms
Switching frequency:4 Hz
Sending axis:Straight
Initialization time:< 380 ms
Switching output :2 x NPN (200 mA)
Hysteresis:50 mm
Protection class:III
Detection area (typical):See diagrams
Multifunctional input (MF):1 x MF
Ultrasonic frequency (typical):120 kHz
Weight:180 g
Supply voltage Vs :DC 9 V ... 30 V
Working range, limiting range:350 mm ... 3,400 mm, 5,000 mm
Power consumption :≤ 1.2 W
Resolution:≤ 0.18 mm
Enclosure rating:IP 67
Accuracy :± 1 %
Additional function:Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB)
Teach-in of switching output
Set levels of switching outputs
Set on delay switching output
Temperature compensation
Synchronization of up to 10 sensors
Multiplexing: no cross talk of up to 10 sensors
Set measurement filters: value filter, filter strength, adjustable sensitivity, foreground suppression and detection area
Reset to factory default
Switching output invertible
Functions may vary depending on sensor type
Repeatability :± 0.15 %
Temperature compensation:+
Housing material:PBT
ultrasonic transducer: polyurethane foam, glass epoxy resin
