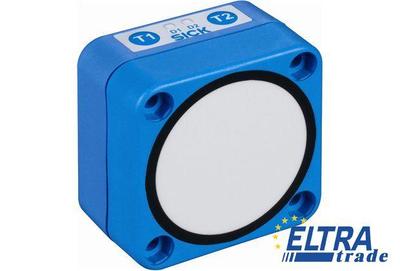

UC30-215164
Ultrasonic sensors
We are sorry, but Sick UC30-215164 is no longer available to order.
Specification:
| Part Number | 6054717 |
| Resolution: | ≤ 0.18 mm |
| Design: | Rectangular |
| Switching output : | 2 x NPN (200 mA) |
| Weight: | 240 g |
| Housing material: | PBT PET ultrasonic transducer: polyurethane foam, glass epoxy resin |
| Power consumption : | ≤ 1.2 W |
| Working range, limiting range: | 600 mm ... 6,000 mm, 8,000 mm |
| Switching frequency: | 3 Hz |
| Multifunctional input (MF): | 1 x MF |
| Additional function: | Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB) Teach-in of switching output Set levels of switching outputs Set on delay switching output Temperature compensation Synchronization of up to 10 sensors Multiplexing: no cross talk of up to 10 sensors Set measurement filters: value filter, filter strength, adjustable sensitivity, foreground suppression and detection area Reset to factory default Switching output invertible Functions may vary depending on sensor type |
| Connection type: | Male connector, M12, 5-pin |
| Protection class: | III |
| Temperature compensation: | + |
| Enclosure rating: | IP 67 |
| Ultrasonic frequency (typical): | 80 kHz |
| Initialization time: | < 450 ms |
| Repeatability : | ± 0.15 % |
| Output time: | 60 ms |
| Ambient temperature: | Operation: -25 ... +70 °C Storage: -40 ... +85 °C |
| Hysteresis: | 100 mm |
| Detection area (typical): | See diagrams |
| Indication: | 2 x LED |
| Supply voltage Vs : | DC 9 V ... 30 V |
| Sending axis: | Straight |
| Response time: | 240 ms |
| Accuracy : | ± 1 % |
