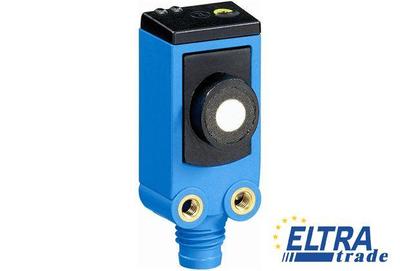

Sick UC4-13345S02

Ultrasonic sensors
Sick UC4-13345S02
Price on Request
One click request

Sick UC4-13345S02 is outdated.


Part Number6049510
Output time:5 ms
Ultrasonic frequency (typical):380 kHz
Switching frequency:100 Hz
Indication:2 x LED
Working range, limiting range :13 mm ... 150 mm, 250 mm
Response time:10 ms
Housing material:ABS-plastic
ultrasonic transducer: polyurethane foam, glass epoxy resin
Supply voltage Vs :DC 15 V ... 30 V
Detection area (typical):See diagrams
Protection class:III
Connection type:Male connector, M8, 3-pin
Resolution:≥ 0.1 mm
Additional function :Set switching mode: Distance to object (DtO) / Window (Wnd) / Object between sensor and background (ObSB)teach-in of switching outputswitching output invertiblereset to factory defaultlock user interface
Initialization time:< 300 ms
Sending axis:Straight
Switching output :1 x NPN (200 mA)
Hysteresis:2 mm
Ambient temperature :Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Weight:10 g
Enclosure rating:IP 67
Power consumption :≤ 0.9 W
Temperature compensation:-
Repeatability :± 0.15 %
Accuracy :0.17 % / K
