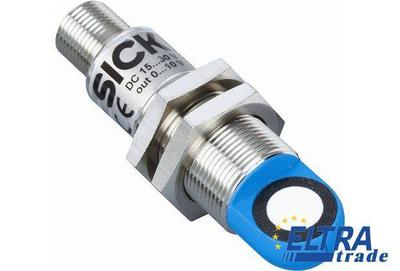

Sick UM18-211127112

Ultrasonic sensors
Sick UM18-211127112
One click request


Part Number6048395
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Resolution:≥ 0.069 mm
Initialization time:< 300 ms
Additional function:Teach-in of analog output
Temperature compensation
Synchronization of up to 10 sensors
Multiplexing: no cross talk of up to 10 sensors
Reset to factory default
Multifunctional input: external teach / synchronization / multiplexing
Invertible analog output
Functions may vary depending on sensor type
Output time:8 ms
Repeatability :± 0.15 %
Supply voltage Vs :DC 10 V ... 30 V
Multifunctional input (MF):1 x MF
Ultrasonic frequency (typical):320 kHz
Protection class:III
Housing material:Nickel-plated brass
ultrasonic transducer: polyurethane foam, glass epoxy resin
Indication:2 x LED
Enclosure rating:IP 67
Analog output:1 x 0 V ... 10 V (≥ 100 k&;937;)
Temperature compensation:+
Power consumption :≤ 1.2 W
Resolution analog output:12 bit
Sending axis:Angled
Working range, limiting range:30 mm ... 250 mm, 350 mm
Weight:30 g
Connection type:Male connector, M12, 5-pin
Accuracy :± 1 %
Detection area (typical):See diagrams
Response time :32 ms
