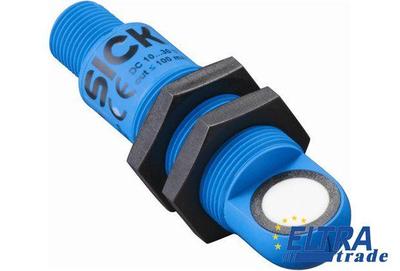

Sick UM18-211165102

Ultrasonic sensors
Sick UM18-211165102
Price on Request
One click request

Sick UM18-211165102 is outdated.


Part Number6048415
Switching output :1 x NPN (200 mA)
Enclosure rating:IP 67
Working range, limiting range:30 mm ... 250 mm, 350 mm
Detection area (typical):See diagrams
Response time:32 ms
Additional function:Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB)
Teach-in of switching output
Invertible switching output
Reset to factory default
Hysteresis:3 mm
Protection class:III
Accuracy :0.17 % / K
Indication:2 x LED
Switching frequency:25 Hz
Resolution:0.2 mm
Weight:20 g
Power consumption :≤ 1.2 W
Ultrasonic frequency (typical):320 kHz
Housing material:PBT
ultrasonic transducer: polyurethane foam, glass epoxy resin
Repeatability :± 0.15 %
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Supply voltage Vs :DC 10 V ... 30 V
Output time:8 ms
Initialization time:< 300 ms
Connection type:Male connector, M12, 4-pin
Sending axis:Angled
