UM18-212126112

Ultrasonic sensors

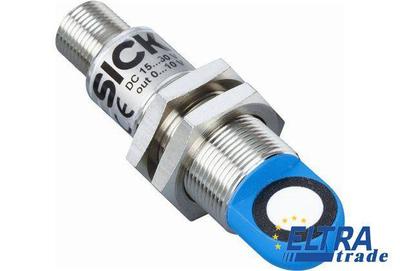

Sick UM18-212126112
269.65 EUR

Specification:

Part Number6048399
Working range, limiting range:65 mm ... 350 mm, 600 mm
Connection type:Male connector, M12, 5-pin
Design:Cylindrical
Additional function:Teach-in of analog output
Temperature compensation
Synchronization of up to 10 sensors
Multiplexing: no cross talk of up to 10 sensors
Reset to factory default
Multifunctional input: external teach / synchronization / multiplexing
Invertible analog output
Functions may vary depending on sensor type
Enclosure rating:IP 67
Resolution:≥ 0.069 mm
Multifunctional input (MF):1 x MF
Power consumption :≤ 1.2 W
Analog output :1 x 4 mA ... 20 mA (≤ 500 &;937;)
Ultrasonic frequency (typical):400 kHz
Output time:16 ms
Initialization time:< 300 ms
Accuracy :± 1 %
Resolution analog output:12 bit
Weight:30 g
Indication:2 x LED
Temperature compensation:+
Supply voltage Vs :DC 10 V ... 30 V
Housing material:Nickel-plated brass
ultrasonic transducer: polyurethane foam, glass epoxy resin
Response time :64 ms
Detection area (typical):See diagrams
Sending axis:Angled
Repeatability :± 0.15 %
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Protection class:III
