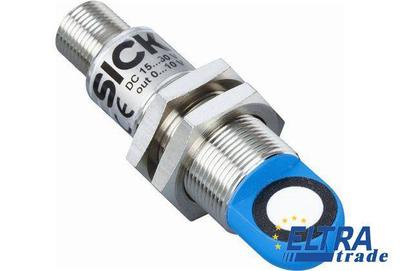

Sick UM18-212127112

Ultrasonic sensors
Sick UM18-212127112
One click request


Part Number6048401
Detection area (typical):See diagrams
Output time:16 ms
Working range, limiting range:65 mm ... 350 mm, 600 mm
Resolution analog output:12 bit
Protection class:III
Ultrasonic frequency (typical):400 kHz
Repeatability :± 0.15 %
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Analog output:1 x 0 V ... 10 V (≥ 100 k&;937;)
Initialization time:< 300 ms
Enclosure rating:IP 67
Response time :64 ms
Weight:30 g
Power consumption :≤ 1.2 W
Multifunctional input (MF):1 x MF
Resolution:≥ 0.069 mm
Indication:2 x LED
Sending axis:Angled
Supply voltage Vs :DC 10 V ... 30 V
Accuracy :± 1 %
Temperature compensation:+
Housing material:Nickel-plated brass
ultrasonic transducer: polyurethane foam, glass epoxy resin
Connection type:Male connector, M12, 5-pin
Additional function:Teach-in of analog output
Temperature compensation
Synchronization of up to 10 sensors
Multiplexing: no cross talk of up to 10 sensors
Reset to factory default
Multifunctional input: external teach / synchronization / multiplexing
Invertible analog output
Functions may vary depending on sensor type
