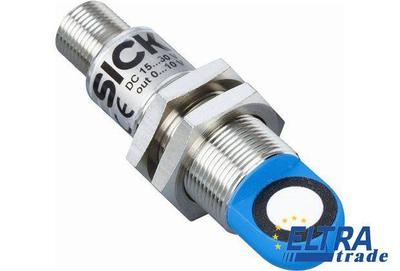

Sick UM18-21212A212

Ultrasonic sensors
Sick UM18-21212A212
One click request


Part Number6048397
Indication:2 x LED
Hysteresis:5 mm
Data interface:IO-Link
Protection class:III
Switching frequency:12 Hz
Working range, limiting range:65 mm ... 350 mm, 600 mm
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Additional function:Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB)
Teach-in of switching output
Invertible switching output
Temperature compensation
Synchronization of up to 10 sensors
Multiplexing: no cross talk of up to 10 sensors
Reset to factory default
Multifunctional input: external teach / synchronization / multiplexing
Functions may vary depending on sensor type
Temperature compensation:+
Initialization time:< 300 ms
Repeatability :± 0.15 %
Enclosure rating:IP 67
Supply voltage Vs :DC 10 V ... 30 V
Switching output :1 x push-pull: PNP/NPN (100 mA)
Output time:16 ms
Sending axis:Angled
Multifunctional input (MF):1 x MF
Resolution:≥ 0.069 mm
Response time:64 ms
Ultrasonic frequency (typical):400 kHz
Power consumption :≤ 1.2 W
Weight:30 g
Accuracy :± 1 %
Detection area (typical):See diagrams
Connection type:Male connector, M12, 5-pin
Housing material:Nickel-plated brass
ultrasonic transducer: polyurethane foam, glass epoxy resin
