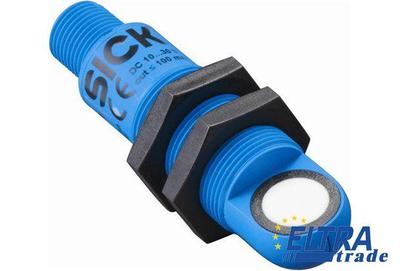

Sick UM18-212161102

Ultrasonic sensors
Sick UM18-212161102
One click request


Part Number6048417
Protection class:III
Sending axis:Angled
Supply voltage Vs :DC 10 V ... 30 V
Indication:2 x LED
Resolution:0.2 mm
Detection area (typical):See diagrams
Ultrasonic frequency (typical):400 kHz
Response time:64 ms
Hysteresis:5 mm
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Output time:16 ms
Switching frequency:12 Hz
Accuracy :0.17 % / K
Switching output :1 x PNP (200 mA)
Weight:20 g
Power consumption :≤ 1.2 W
Enclosure rating:IP 67
Repeatability :± 0.15 %
Working range, limiting range:65 mm ... 350 mm, 600 mm
Initialization time:< 300 ms
Connection type:Male connector, M12, 4-pin
Additional function:Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB)
Teach-in of switching output
Invertible switching output
Reset to factory default
Housing material:PBT
ultrasonic transducer: polyurethane foam, glass epoxy resin
