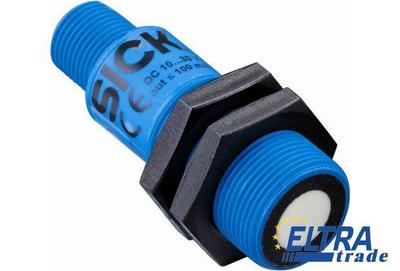

Sick UM18-212165101

Ultrasonic sensors
Sick UM18-212165101
One click request


Part Number6048418
Connection type:Male connector, M12, 4-pin
Output time:16 ms
Power consumption :≤ 1.2 W
Initialization time:< 300 ms
Repeatability :± 0.15 %
Detection area (typical):See diagrams
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Switching frequency:12 Hz
Resolution:0.2 mm
Indication:2 x LED
Protection class:III
Response time:64 ms
Housing material:PBT
ultrasonic transducer: polyurethane foam, glass epoxy resin
Switching output :1 x NPN (200 mA)
Weight:15 g
Supply voltage Vs :DC 10 V ... 30 V
Accuracy :0.17 % / K
Sending axis:Straight
Enclosure rating:IP 67
Additional function:Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB)
Teach-in of switching output
Invertible switching output
Reset to factory default
Working range, limiting range:65 mm ... 350 mm, 600 mm
Hysteresis:5 mm
Ultrasonic frequency (typical):400 kHz
