UM18-217126112

Ultrasonic sensors

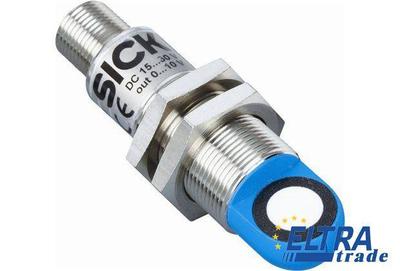

Sick UM18-217126112
269.65 EUR

Specification:

Part Number6048387
Indication:2 x LED
Design:Cylindrical
Supply voltage Vs :DC 10 V ... 30 V
Multifunctional input (MF):1 x MF
Working range, limiting range:20 mm ... 150 mm, 250 mm
Power consumption :≤ 1.2 W
Temperature compensation:+
Ultrasonic frequency (typical):380 kHz
Accuracy :± 1 %
Response time :32 ms
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Repeatability :± 0.15 %
Connection type:Male connector, M12, 5-pin
Sending axis:Angled
Protection class:III
Housing material:Nickel-plated brass
ultrasonic transducer: polyurethane foam, glass epoxy resin
Initialization time:< 300 ms
Additional function:Teach-in of analog output
Temperature compensation
Synchronization of up to 10 sensors
Multiplexing: no cross talk of up to 10 sensors
Reset to factory default
Multifunctional input: external teach / synchronization / multiplexing
Invertible analog output
Functions may vary depending on sensor type
Weight:30 g
Enclosure rating:IP 67
Resolution analog output:12 bit
Detection area (typical):See diagrams
Output time:8 ms
Analog output :1 x 4 mA ... 20 mA (≤ 500 &;937;)
Resolution:≥ 0.069 mm
