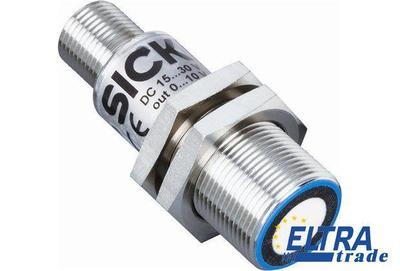

Sick UM18-21712A211
Ultrasonic sensors
Specification:
| Part Number | 6048384 |
| Multifunctional input (MF): | 1 x MF |
| Ambient temperature: | Operation: -25 ... +70 °C Storage: -40 ... +85 °C |
| Resolution: | ≥ 0.069 mm |
| Design: | Cylindrical |
| Protection class: | III |
| Hysteresis: | 2 mm |
| Repeatability : | ± 0.15 % |
| Working range, limiting range: | 20 mm ... 150 mm, 250 mm |
| Switching frequency: | 25 Hz |
| Accuracy : | ± 1 % |
| Additional function: | Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB) Teach-in of switching output Invertible switching output IO-Link Temperature compensation Synchronization of up to 10 sensors Multiplexing: no cross talk of up to 10 sensors Reset to factory default Multifunctional input: external teach / synchronization / multiplexing Functions may vary depending on sensor type |
| Indication: | 2 x LED |
| Connection type: | Male connector, M12, 5-pin |
| Enclosure rating: | IP 67 |
| Response time: | 32 ms |
| Ultrasonic frequency (typical): | 380 kHz |
| Detection area (typical): | See diagrams |
| Switching output : | 1 x push-pull: PNP/NPN (100 mA) |
| Weight: | 25 g |
| Initialization time: | < 300 ms |
| Supply voltage Vs : | DC 10 V ... 30 V |
| Temperature compensation: | + |
| Housing material: | Nickel-plated brass ultrasonic transducer: polyurethane foam, glass epoxy resin |
| Data interface: | IO-Link |
| Output time: | 8 ms |
| Power consumption : | ≤ 1.2 W |
| Sending axis: | Straight |
