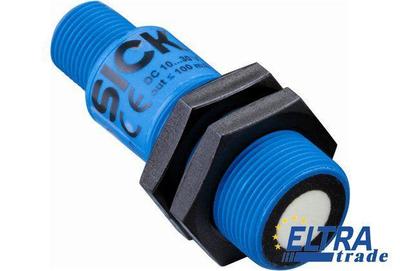

Sick UM18-217165101
Ultrasonic sensors
Specification:
| Part Number | 6048410 |
| Repeatability : | ± 0.15 % |
| Ultrasonic frequency (typical): | 380 kHz |
| Switching frequency: | 25 Hz |
| Supply voltage Vs : | DC 10 V ... 30 V |
| Connection type: | Male connector, M12, 4-pin |
| Housing material: | PBT ultrasonic transducer: polyurethane foam, glass epoxy resin |
| Weight: | 15 g |
| Power consumption : | ≤ 1.2 W |
| Accuracy : | 0.17 % / K |
| Working range, limiting range: | 20 mm ... 150 mm, 250 mm |
| Output time: | 8 ms |
| Sending axis: | Straight |
| Initialization time: | < 300 ms |
| Indication: | 2 x LED |
| Resolution: | 0.2 mm |
| Switching output : | 1 x NPN (200 mA) |
| Hysteresis: | 2 mm |
| Detection area (typical): | See diagrams |
| Response time: | 32 ms |
| Design: | Cylindrical |
| Protection class: | III |
| Additional function: | Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB) Teach-in of switching output Invertible switching output Reset to factory default |
| Enclosure rating: | IP 67 |
| Ambient temperature: | Operation: -25 ... +70 °C Storage: -40 ... +85 °C |
