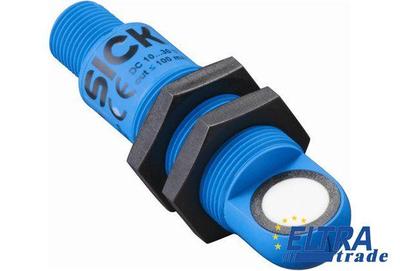

Sick UM18-217165102

Ultrasonic sensors
Sick UM18-217165102
Price on Request
One click request

Sick UM18-217165102 is outdated.


Part Number6048411
Switching output :1 x NPN (200 mA)
Housing material:PBT
ultrasonic transducer: polyurethane foam, glass epoxy resin
Additional function:Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB)
Teach-in of switching output
Invertible switching output
Reset to factory default
Working range, limiting range:20 mm ... 150 mm, 250 mm
Weight:20 g
Protection class:III
Response time:32 ms
Indication:2 x LED
Switching frequency:25 Hz
Power consumption :≤ 1.2 W
Connection type:Male connector, M12, 4-pin
Resolution:0.2 mm
Hysteresis:2 mm
Sending axis:Angled
Initialization time:< 300 ms
Accuracy :0.17 % / K
Ultrasonic frequency (typical):380 kHz
Supply voltage Vs :DC 10 V ... 30 V
Repeatability :± 0.15 %
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Detection area (typical):See diagrams
Output time:8 ms
Enclosure rating:IP 67
