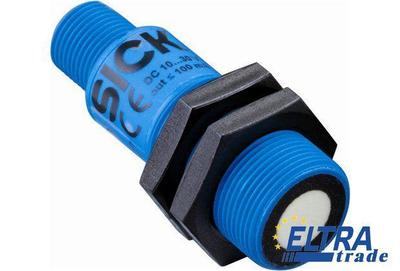

Sick UM18-218165101

Ultrasonic sensors
Sick UM18-218165101
Price on Request
One click request

Sick UM18-218165101 is outdated.


Part Number6048422
Switching output :1 x NPN (200 mA)
Initialization time:< 300 ms
Supply voltage Vs :DC 10 V ... 30 V
Accuracy :0.17 % / K
Working range, limiting range:120 mm ... 1,000 mm, 1,300 mm
Connection type:Male connector, M12, 4-pin
Indication:2 x LED
Ultrasonic frequency (typical):200 kHz
Output time:20 ms
Protection class:III
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Response time:80 ms
Sending axis:Straight
Additional function:Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB)
Teach-in of switching output
Invertible switching output
Reset to factory default
Housing material:PBT
ultrasonic transducer: polyurethane foam, glass epoxy resin
Detection area (typical):See diagrams
Switching frequency:10 Hz
Power consumption :≤ 1.2 W
Enclosure rating:IP 67
Repeatability :± 0.15 %
Weight:15 g
Resolution:0.2 mm
Hysteresis:20 mm
