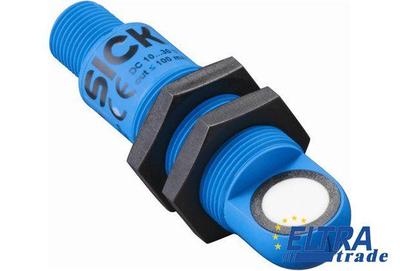

Sick UM18-218165102

Ultrasonic sensors
Sick UM18-218165102
Price on Request
One click request

Sick UM18-218165102 is outdated.


Part Number6048423
Power consumption :≤ 1.2 W
Ambient temperature:Operation: -25 ... +70 °C
Storage: -40 ... +85 °C
Indication:2 x LED
Additional function:Set switching mode: Distance to object (DtO) / switching window (Wnd) / Object Between Sensor and Background (ObSB)
Teach-in of switching output
Invertible switching output
Reset to factory default
Initialization time:< 300 ms
Repeatability :± 0.15 %
Detection area (typical):See diagrams
Switching frequency:10 Hz
Weight:20 g
Connection type:Male connector, M12, 4-pin
Sending axis:Angled
Enclosure rating:IP 67
Accuracy :0.17 % / K
Switching output :1 x NPN (200 mA)
Housing material:PBT
ultrasonic transducer: polyurethane foam, glass epoxy resin
Resolution:0.2 mm
Ultrasonic frequency (typical):200 kHz
Protection class:III
Supply voltage Vs :DC 10 V ... 30 V
Output time:20 ms
Working range, limiting range:120 mm ... 1,000 mm, 1,300 mm
Hysteresis:20 mm
Response time:80 ms
