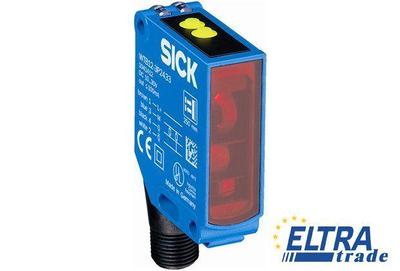

Sick WL12-3N1141

Photoelectric sensors W12
Sick WL12-3N1141
125.42
One click request

Specification:

Part Number1041447
Light spot size (distance):Ø 100 mm (3 m)
Angle of dispersion:Ca. 1.5 °
Type of light:Visible red light
Power consumption:≤ 40 mA
Adjustment:Potentiometer, 5 turns
Ambient storage temperature:-40 °C ... 75 °C
Light source:LED
Wave length:640 nm
Enclosure rating:IP 66
IP 67
IP 69K
UL File No.:NRKH.E181493 & NRKH7.E181493
Dimensions (W x H x D):15.6 mm x 48.5 mm x 42 mm
Sensing range max.:0 m ... 7 m
Switching frequency:1,500 Hz
Sensing range:0 m ... 5 m
Special features:Without polarisation filter
Weight:200 g
Connection type:Cable, 4-wire, 2 m
Protection class:II
Switching output:NPN
Output function:Complementary
Housing material:Metal
Output current Imax.:100 mA
Signal voltage NPN HIGH / LOW:Approx. VS / < 2.5 V
Circuit protection:A, C, D
Switching mode:Light/dark switching
Housing design (light emission):Rectangular
Cable material:PVC
Supply voltage:10 V DC ... 30 V DC
Response time:≤ 330 µs
Sensor/detection principle:Photoelectric retro-reflective sensor, autocollimation
Ambient operating temperature:-40 °C ... 60 °C
Conductor cross-section:0.25 mm²
