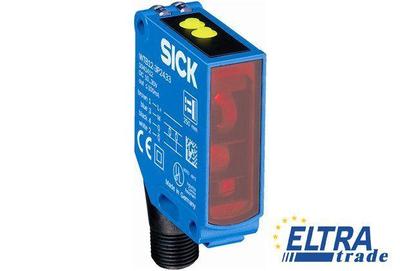

Sick WL12-3N1161

Photoelectric sensors W12
Sick WL12-3N1161
125.42
One click request

Specification:

Part Number1041455
UL File No.:NRKH.E181493 & NRKH7.E181493
Enclosure rating:IP 66
IP 67
IP 69K
Protection class:II
Dimensions (W x H x D):15.6 mm x 48.5 mm x 42 mm
Type of light:Visible red light
Signal voltage NPN HIGH / LOW:Approx. VS / < 2.5 V
Switching mode:Light/dark switching
Special feature:Focused optics
Sensing range:0 m ... 1 m
Output current Imax.:100 mA
Housing material:Metal
Cable material:PVC
Conductor cross-section:0.25 mm²
Wave length:640 nm
Sensor/detection principle:Photoelectric retro-reflective sensor, autocollimation
Adjustment:Potentiometer, 5 turns
Connection type:Cable, 4-wire, 2 m
Light spot size (distance):Ø 2 mm (90 mm)
Power consumption:≤ 40 mA
Ambient operating temperature:-40 °C ... 60 °C
Supply voltage:10 V DC ... 30 V DC
Housing design (light emission):Rectangular
Switching frequency:1,500 Hz
Circuit protection:A, C, D
Special features:Without polarisation filter
Output function:Complementary
Light source:LED
Switching output:NPN
Ambient storage temperature:-40 °C ... 75 °C
Response time:≤ 330 µs
Weight:200 g
Sensing range max.:0 m ... 2 m
Angle of dispersion:Ca. 5 °
